TENNIS COURT LIGHTING
STEP 1: HOW MUCH LIGHT DO I NEED ?
If unsure, please ask us (Use Form below or telephone, email, etc)
HOW MUCH LIGHT IS NEEDED FOR MY TENNIS COURT ?
CIBSE are the Chartered Institute of Building Services Engineers who are an Authority in recommending Light Levels and General Lighting standards for Public areas, workplaces, Sports, etc.
Typical Recommendations:
- 200 Lux for Training and Local Competition. Note Training Level would usually include Recreation and low level competition.
- 300 Lux for Local or Regional Competition level.
- 500 Lux for National or International Competition level.
There are often specific Recommendations from Sporting Organisations which differ from the above – see adjoining Panel.
Follow a manual added link
LAWN TENNIS ASSOCIATION (LTA) recommends 500 Lux Average within Principal Play Area (PPA) and 400 Lux Average within Total Play Area (TPA).
Link to LTA GUIDELINES
PLANNING PERMISSION NEEDED ?
We can produce any Lighting Calculation (Lighting Design) in the Format required by Local Authorities.
The difference is mainly a Format issue, but specific issues, example – showing Lighting Spill outside the Court or onto nearby Properties etc may be required.
INSTALLATION ?
VeeLite is a Lighting Design and Manufacturing Company.
We do not install Lighting. Instead we work closely with Electrical Contractors and can provide Recommendations if required.
STEP 2: CHOOSE A LIGHTING LAYOUT
If Your Pitch is not here, please contact us and we will produce a suitable Design (see Form below)
COURT LAYOUT:
SINGLE COURT
– VARIOUS

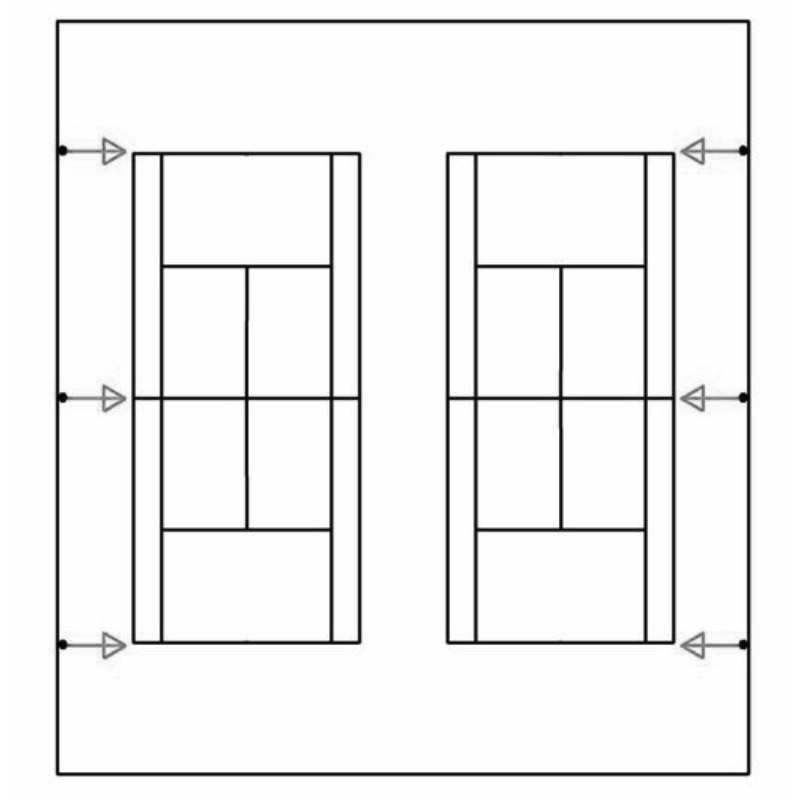

DOUBLE COURT
– SIDE LIT

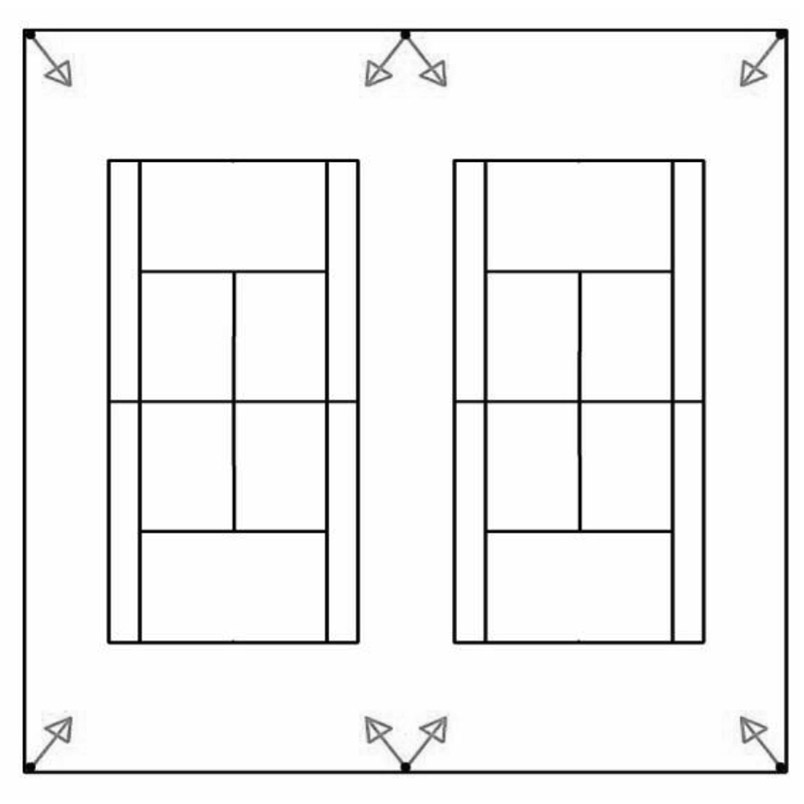

DOUBLE COURT
– CORNER LIT
DOUBLE COURT
– CORNER & SIDE LIT
200 LUX – Training or Local Competition
Follow a manual added link
4 x 8 M Column
– with 8 x 240w Floodlights
Follow a manual added link
6 x 10 M Column
– with 12 x 240w Floodlights
Follow a manual added link
6 x 10 M Column
– with 16 x 240w Floodlights
Follow a manual added link
9 x 8 M Column
– with 12 x 240w Floodlights
300 LUX – Regional Competition
Follow a manual added link
4 x 8 M Column
– with 12 x 240w Floodlights
Follow a manual added link
6 x 10 M Column
– with 10 x 400w Floodlights
Follow a manual added link
6 x 10 M Column
– with 12 x 400w Floodlights
Follow a manual added link
9 x 8 M Column
– with 12 x 300w Floodlights
500 LUX – National or Intn Competition
Follow a manual added link
4 x 8 M Column
– with 8 x 400w Floodlights
Follow a manual added link
6 x 10 M Column
– with 12 x 600w Floodlights
Follow a manual added link
6 x 10 M Column
– with 8 x 800w Floodlights
Follow a manual added link
9 x 10 M Column
– with 12 x 400w Floodlights
STEP 3: GET A QUOTE (or OTHER QUERY)
Contact our Sports Lighting Team
Our experienced Sports Floodlighting experts
are here to assist you.
