Tubular LED Pendant Light
Product Code: 400
Description

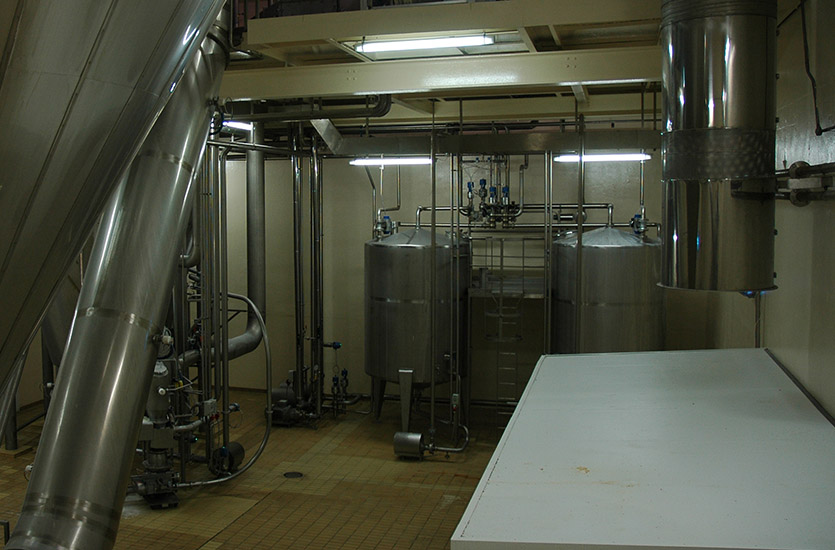

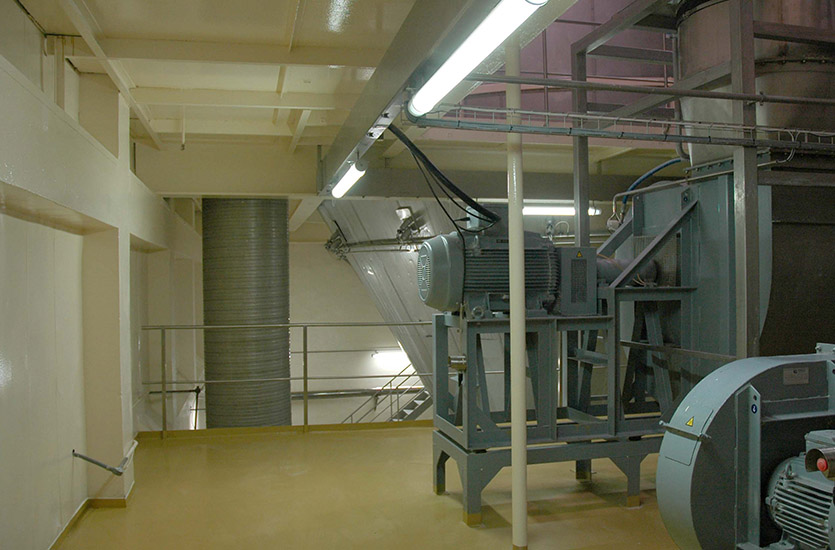

Tubular LED Pendant is suitable for industrial and food processing environments.
Construction
Construction: Polycarbonate housing as standard. IP66 / IP69K, IK10. PMMA or glass on request for better corrosion resistance (IK06). 316 grade stainless steel endcaps / fixtures.
Lens: Frosted with wide beam. Clear with medium and narrow beams.
Installation: Suspended as standard. Surface mounted via bracket. Suspension kit not included as standard.
Optics: 120° Wide beam as standard. Narrow 60° or medium 90° beam honeycomb optic on request for low glare (UGR <16). Product Compliance: EN 60598; CE.
Options
Beam angles, Clear/Frosted Lens, PC or PMMA, Surface Mounted. DALI or 1-10V dimming, Suspension cable kit.
Electrical
LED: 20w-50w LED. 4000K Ra80 as standard. 3000K or 5000K or request. Ambient Temp: -30°C to 40°C. Rated Life: 50,000 hrs @ 25° C ambient.
Driver: Philips Xitanium. 220-240V AC. 50/60Hz. 1kV line-line, 2kV line-earth surge protection.
Downloads
Product Leaflet: Download Product Leaflet
