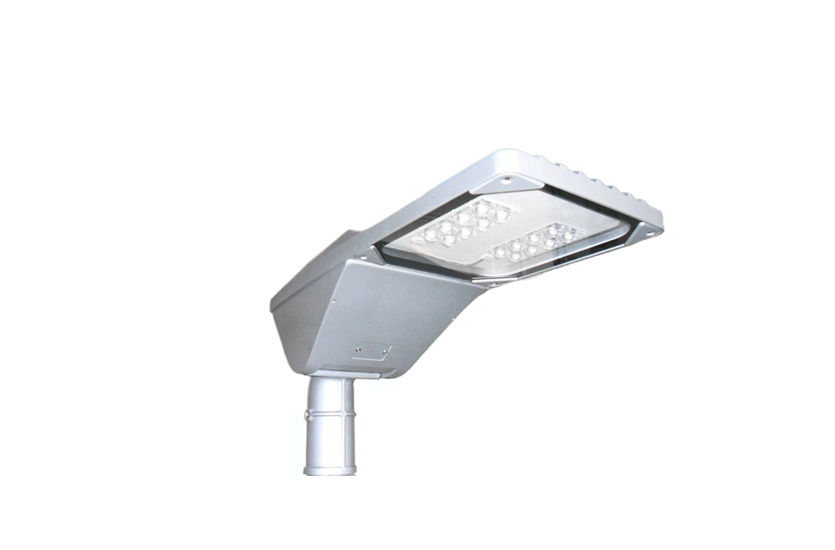

LED Streetlight
Product Code: 678
Description
Modern functional LED streetlight. Ideal for roadway, path or carpark applications.
Construction
Construction: Marine grade die-cast aluminium. IP66. IK09. Driver and LED modules are accessible for maintenance or replacement.
Lens: Tempered glass as standard.
Installation: Luminaire supplied with D76mm mastfitter for post-top mounting orside entry. D60mm on request. Tiltable: 5°, 10°, 15° or 20°.
Finish: Grey RAL 9006 as standard. Other RAL colours on request.
Manufactured: EU.
Product Compliance: EN 60598, CE.
Options
Dimming, DALI, Photocell, various optics available.
Electrical
LED: Available in 10w to 134w LED (see ordering codes). CRI 70 4000K (standard).
3000K or other on request. Asymmetric street optic as standard. See ordering codes for more details.
Life: L90 B10 >100,000 hours (at 25°C).
Driver: 220-240V AC 50/60 Hz.
700mA as Standard. 350mA, 500mA, 1050mA or custom setting on request.
Lifetime (<10% failures): 100,000 hrs.
Mains Surge Protection: 10kV device included as standard.
Temperature: -30°C +40°C
Downloads
