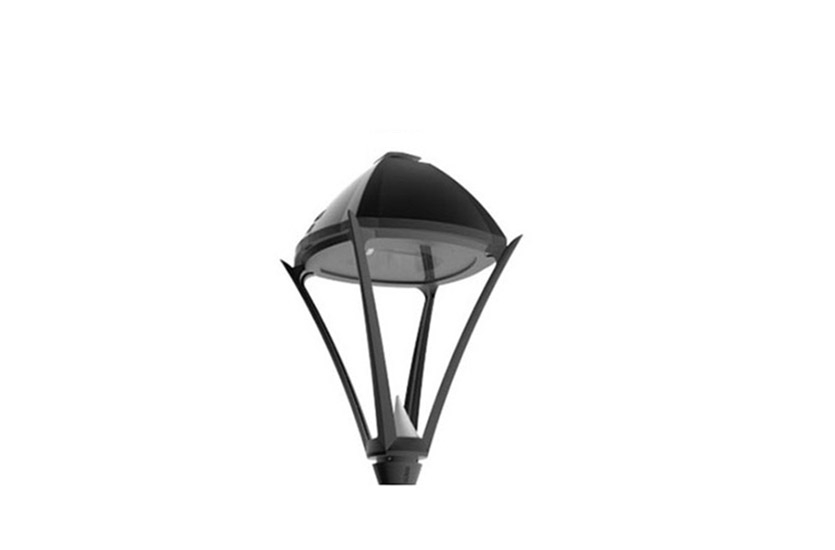

Modern LED Street Lantern
Product Code: 336
Description
Architecturally designed outdoor luminaire available in suspended and post top versions.
Construction
Construction: Made up of three parts –
The Dome: Spun aluminium.
The Frame: 4 cast aluminium arms attached to base piece.
The Optical Block: Anodised aluminium reflector sealed in a clear acrylic bowl IP66 rated. IK10.
Installation: Standard Version is Post top mounted via 60mm diameter spigot/column. Optional Pendant version is mounted via a selection of special mounting brackets.
Finish: Black as standard. Other colours available on request.
Manufactured: EU.
Product Compliance: EN 60598, CE.
Options
Available in two sizes with two mounting options – post-top or pendant. Diffuser available in clear, frosted, opal and water droplets finish. Lower cone of light can be coloured.
Electrical
LED: 54w, 77w or 108w LED. 4K as standard (3K on request).
Life: to 95,000 hours.
Downloads
Product Leaflet: Download Product Leaflet
