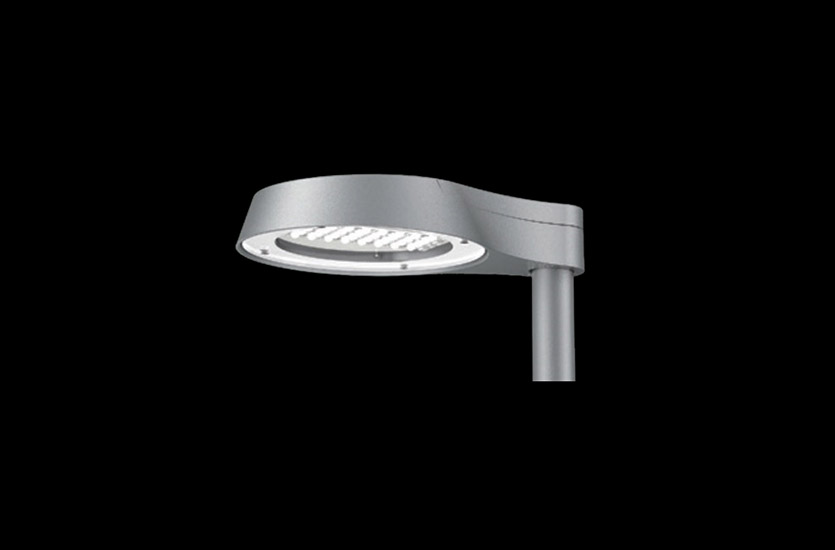

Architectural Streetlight
Product Code: 677
Description
Architectural Streetlight with LED optics ideal for roadway, pathway or Pedestrian areas.
Construction
Construction: Die-cast aluminium. IP66. IK08 as standard. Driver and LED Modules are accessible for maintenance or replacement.
Lens: Tempered glass as standard.
Installation: Luminaire to be mounted on 60mm diameter spigot/poletop. Adapters for horizontal spigot available as an option.
Finish: Grey RAL 9006 as standard. Other RAL colours on request.
Product Compliance: EN 60598; CE.
Options
Options: Dimming, DALI, Photocell, various optics available. Internal shield available to reduce backlight.
Electrical
LED: Available in 10w to 68w LED (see ordering codes). CRI 70 4000K (standard).
3000K or other on request. Asymmetric street optic as standard. See ordering codes for more details.
Life: L90 B10 >100,000 hours. (at 25°C).
Driver: 220-240V AC 50/60 Hz. 700mA as Standard. 350mA, 500mA, 1050mA or custom setting on request.
Lifetime (<10% failures): 100,000 hrs. Mains Surge Protection: 10kV device included as standard.
Temperature: -30°C +50°C
Downloads
Product Leaflet: Download Product Leaflet
