Performance Car Park and Area Light
Product Code: 905
Description

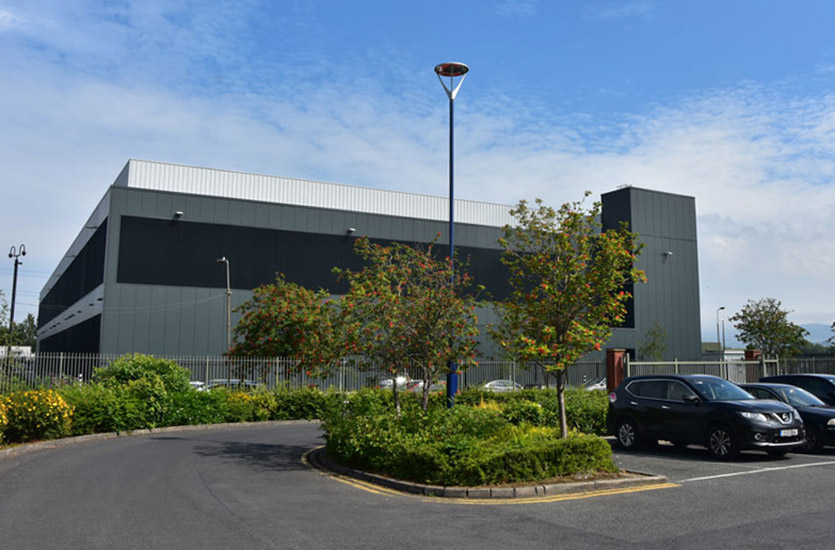

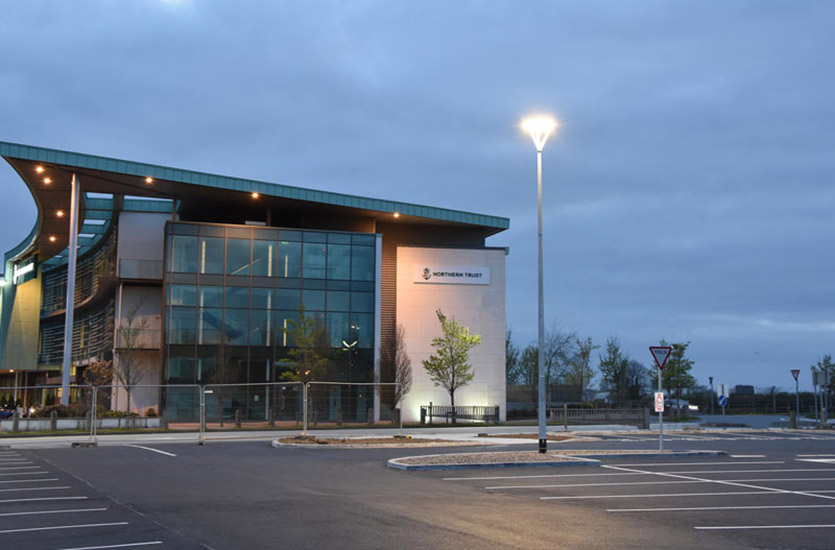

Architectural LED post-top luminaire for car parks or large area illumination. For new Projects, typically 1 fitting will illuminate 112 parking spaces, or an area of 50M x 50M. Minimise column clutter (by maximising spacings). Wattages to 600w LED.
Construction
Construction: Die Cast aluminium, flat glass optics (ie. no uplight). Electric cable thru Centre Pipe into Tripod. IP66 Optics/ IP65 Driver Housing.
Installation: Tripod has integral Mastfitter – Spigot size: D76mm x 150mm high.
Finish: Grey RAL 9006 as standard. Other colours on request.
Access: Modules and Driver are accessable for maintenance or future upgrade.
Manufactured: EU.
Product Compliance: EN 60598, CE.
Options
Forward Throw or Streetlight Optics, DALI, CLO/Programmable Dimming, Photocell, Various CCT.
Electrical
LED: 210w to 570w LED. 4000K CRI>70 as standard, 3000K or other on request.
Lifetime – LED Module:
Lifetime: L90 B10 >100,000 hours @25°C.
Driver: 220-240V AC, 50/60 Hz.
3 Drivers per luminaire mounted in a separate gear housing fixed to the top of the luminaire to keep them cooler.
Lifetime (<10% failures): 80,000 Hours @ 25°C.
Mains Surge Protection: 10kV as standard.
